Powerful and Flexible Conveyor Systems

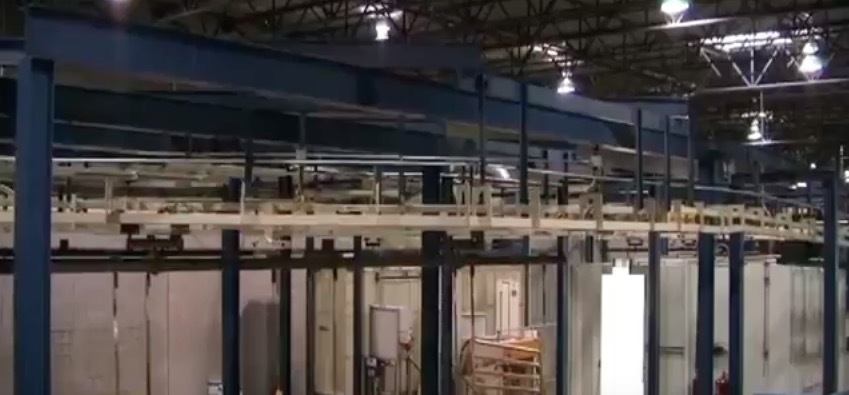

Richards-Wilcox OveR-Way conveyors combine power and free flexibility with a heavy duty over and under configuration. Utilizing the time proven effectiveness of Zig-Zag power conveyors and the durability of two 3″ toe-to-toe load channels, OveR-Way is the ideal high-capacity solution for transporting and storing work in process.

Manufactured and stocked in modular components, OveR-Way is pre-welded at the factory to ensure unparalleled precision and quick turnaround on fast-track projects.

CAPACITY

Single OveR-Way carriers support loads up to 1,000 pounds

Tandem carriers can handle loads up to 2,000 pounds

Features

  • Eleven Standard Zig-Zag Components OveR-Way utilizes the same standard components used in Richards-Wilcox chain conveyors.
  • Rugged Design OveR-Way’s load track consists of two 3″, 4.1 pound, toe-to-toe channels for high-wear applications.
  • Control Systems OveR-Way is available with any of a variety of state-of-the-art control systems, ranging from simple PLC-based controls to complex PC-based routing and tracking systems.
  • Modular Components OveR-Way components are modular and factory-stocked to minimize lead times for fast-track projects.

Applications

  • Paint Finishing Systems
  • Investments Casting Systems
  • Comber Lap Delivery
  • Aerospace Finishing
  • Extrusion Finishing
  • Progressive Assembly
  • WIP Buffer Storage
  • Sliver Can Delivery
  • Fiber Delivery

Benefits

Controls Production Rates

OveR-Way optimizes production by ensuring that the right parts arrive at the correct operations in a continuous flow, especially when rates of production differ between operations.

Maintains Quality

OveR-Way eliminates needless production rehandling and manual transporting by accomplishing finishing and/or assembly processes with a single material handling system.

Boosts Efficiency

OveR-Way maintains a traveling record of work-in-progress, logging information on where product has been and where defects may have occurred.

Creates Usable Space

OveR-Way frees up valuable floor space for more value-added operations by organizing product flow and efficiently utilizing available space overhead.

Protects Product and Parts

OveR-Way uses an enclosed track that prevents contaminants from falling onto the product. It also protects the chain from dirt, abrasives and solvents, prolonging chain life.
